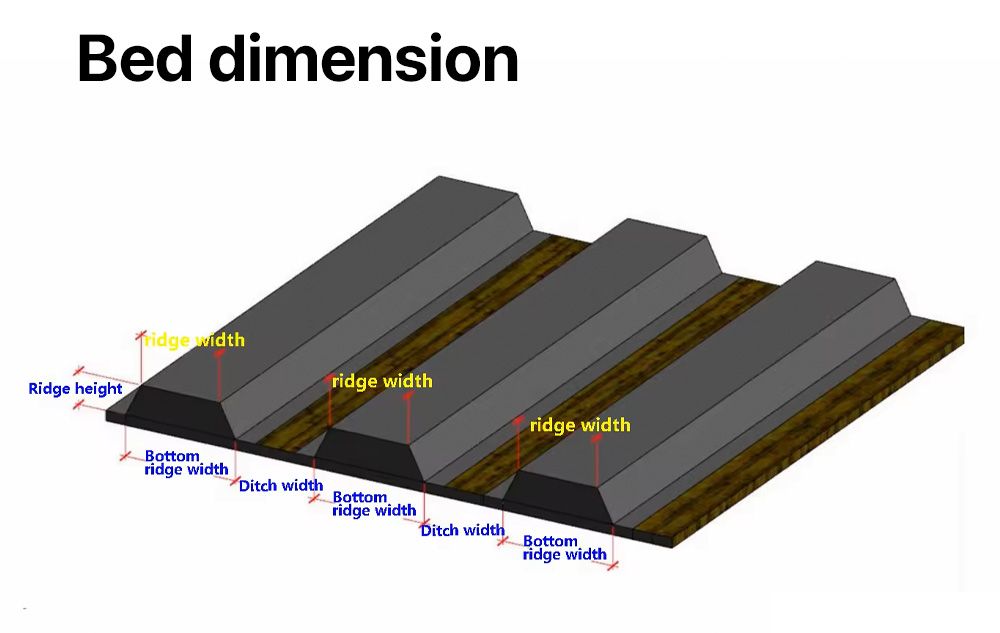

This Tractor Mounted Ridger and Bed Former is a highly versatile agricultural implement designed for precision soil preparation. It allows farmers to create uniform ridges and beds tailored to specific agronomic needs. As illustrated in the bed dimension diagram, the machine offers exceptional adjustability:
Customizable Dimensions: The ridge width can be adjusted from 0.3 to 2 meters, and the ditch width from 20 to 50 cm (or more).
Adjustable Height: Standard ridge height ranges from 15-30 cm, with options for higher ridges based on crop requirements.
Multi-Function All-in-One Operation:

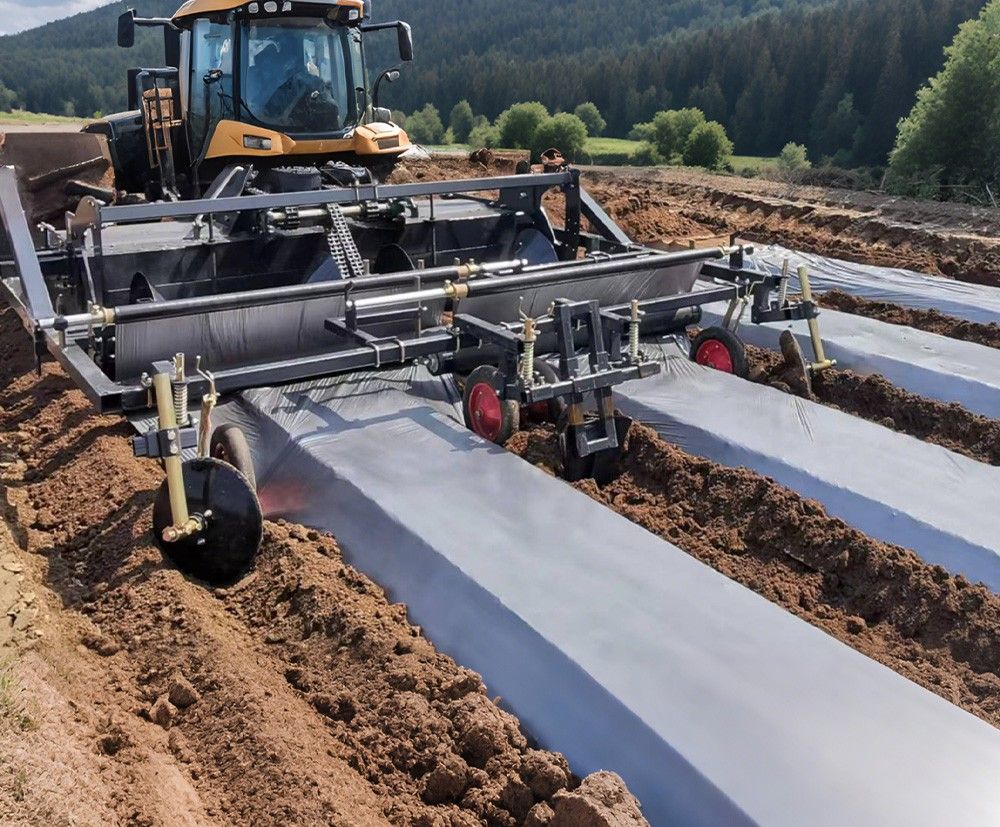

Beyond basic ridging, this machine can be equipped with various functional modules to complete multiple tasks in a single pass, saving labor and time. Optional functions include: 1. Plastic film laying (Mulching)
2. Drip tape laying
3. Hole maker

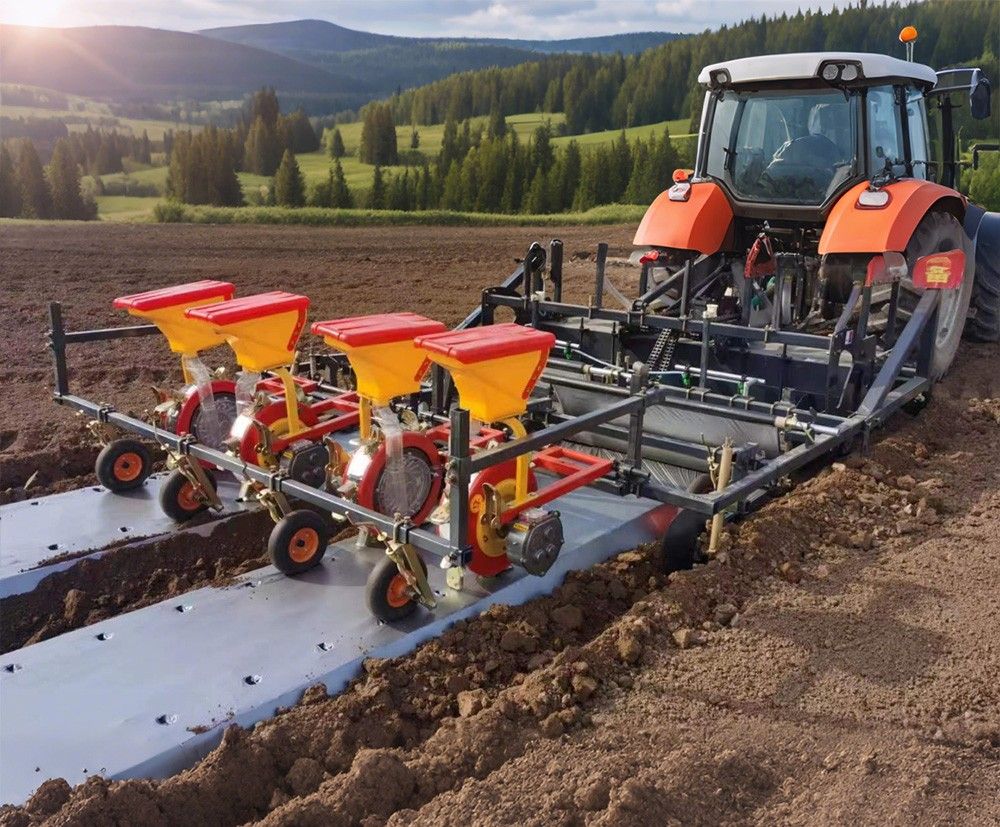

4. Grain/Vegetable planter
5. Fertilizer box
| Parameter | Value / Range |
|---|---|
| Product Name | Tractor Mounted Ridger / Bed Former |
| Ridge Width | 0.3 m - 2.0 m (Adjustable) |
| Ridge Height | 15 - 30 cm (or higher customized) |
| Ditch Width | 20 - 50 cm (or more) |
| Optional Function 1 | Plastic Film Layer (Mulching) |
| Optional Function 2 | Drip Tape Layer |
| Optional Function 3 | Hole Maker |
| Optional Function 4 | Grain / Vegetable Planter |
| Optional Function 5 | Fertilizer Box |
