Working width 1.8-4 m
Working depth 120-200 mm
Disc diameter 660 mm
+86-15978403565
judy@volunmachinery.com

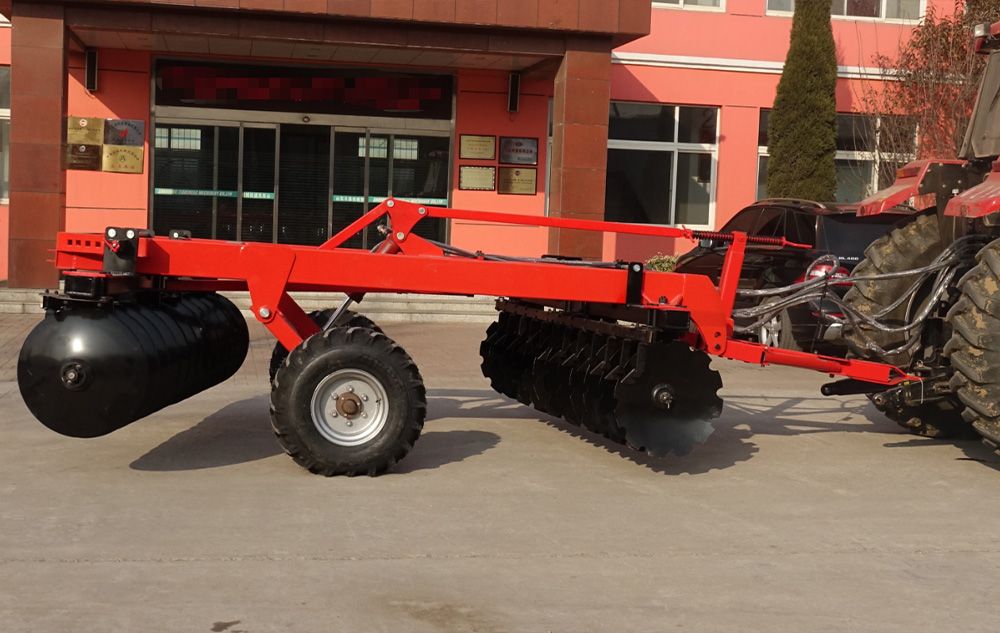

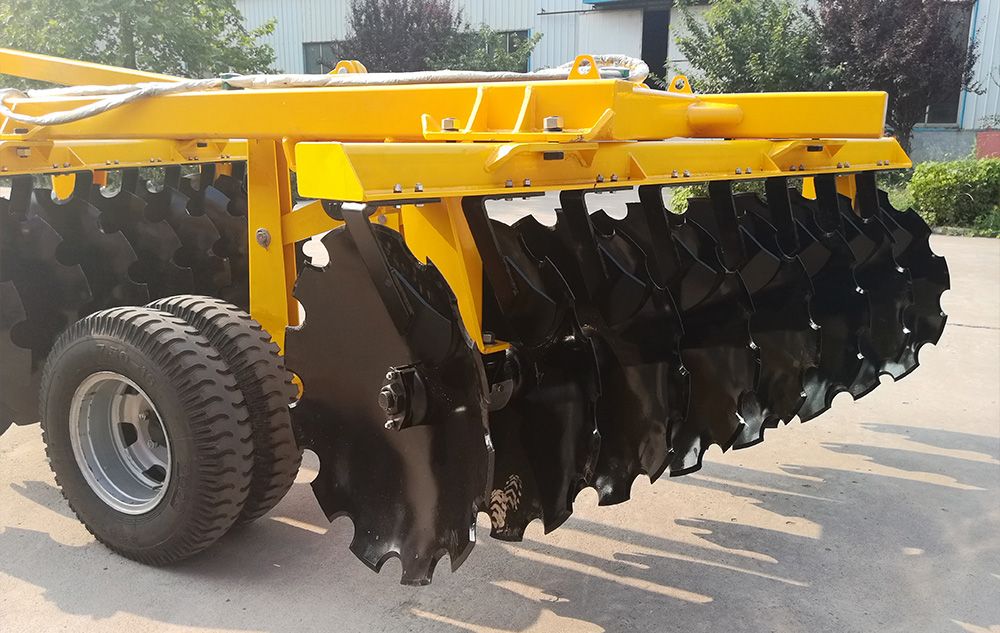

The 1BZ series hydraulic offset heavy-duty disc harrow is a high-efficiency tractor-driven implement designed for superior soil penetration and post-plough soil loosening. It is highly adaptable to challenging conditions, including sticky heavy soil, uncultivated fields, and plots with dense weeds.
Constructed from welded square tubes, this harrow features a simple yet rigid structure ensuring durability. It is equipped with hydraulic lifting rubber wheels, which provide convenient transportation and a small turning radius. This advanced design dramatically improves both production efficiency and the operational lifetime of the harrow.
| Model | 1BZ-1.8 | 1BZ-2.2 | 1BZ-2.5 | 1BZ-3.0 | 1BZ-3.4 | 1BZ-4.0 |
|---|---|---|---|---|---|---|
| Working width (m) | 1.8 | 2.2 | 2.5 | 3.0 | 3.4 | 4.0 |
| Working depth (mm) | 120-200 | |||||
| No. of discs (pcs) | 16 | 20 | 24 | 28 | 32 | 36 |
| Disc diameter (mm) | 660 | 660 | 660 | 660 | 660 | 660 |
| Weight (kg) | 1100 | 1250 | 1350 | 1450 | 1550 | 1700 |
| Tractor power (hp) | 70-85 | 80-90 | 85-100 | 90-120 | 120-150 | 140-160 |
| Linkage | Trailed | |||||
