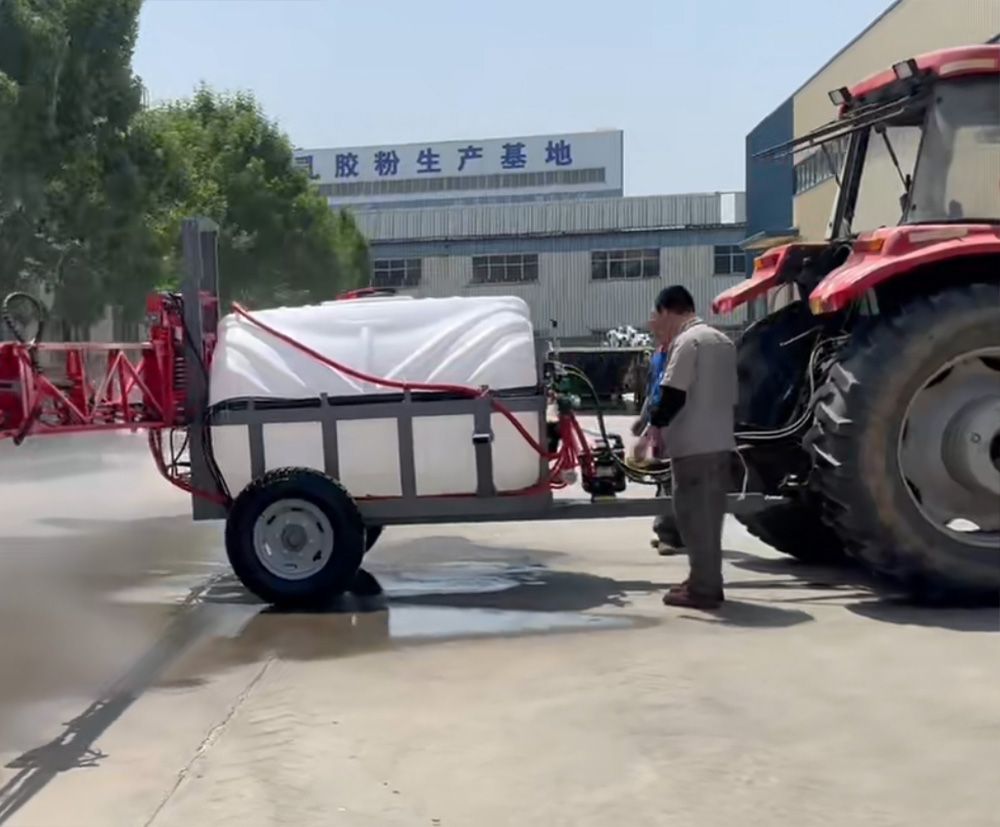

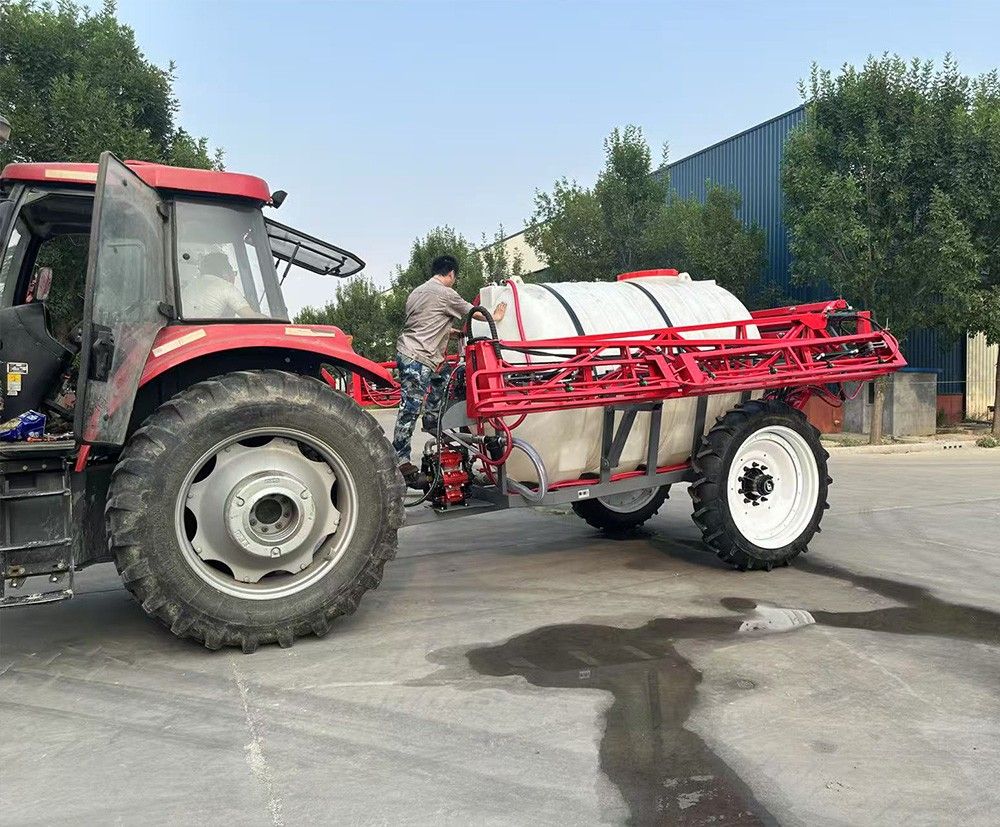

The Tractor Driven Boom Sprayer is a highly efficient agricultural machine designed for large-scale pesticide and liquid fertilizer application. To meet various farming needs, we offer a wide range of tank capacities from 400 Liters up to 5000 Liters, achieving an impressive working efficiency of up to 16 hectares per hour.

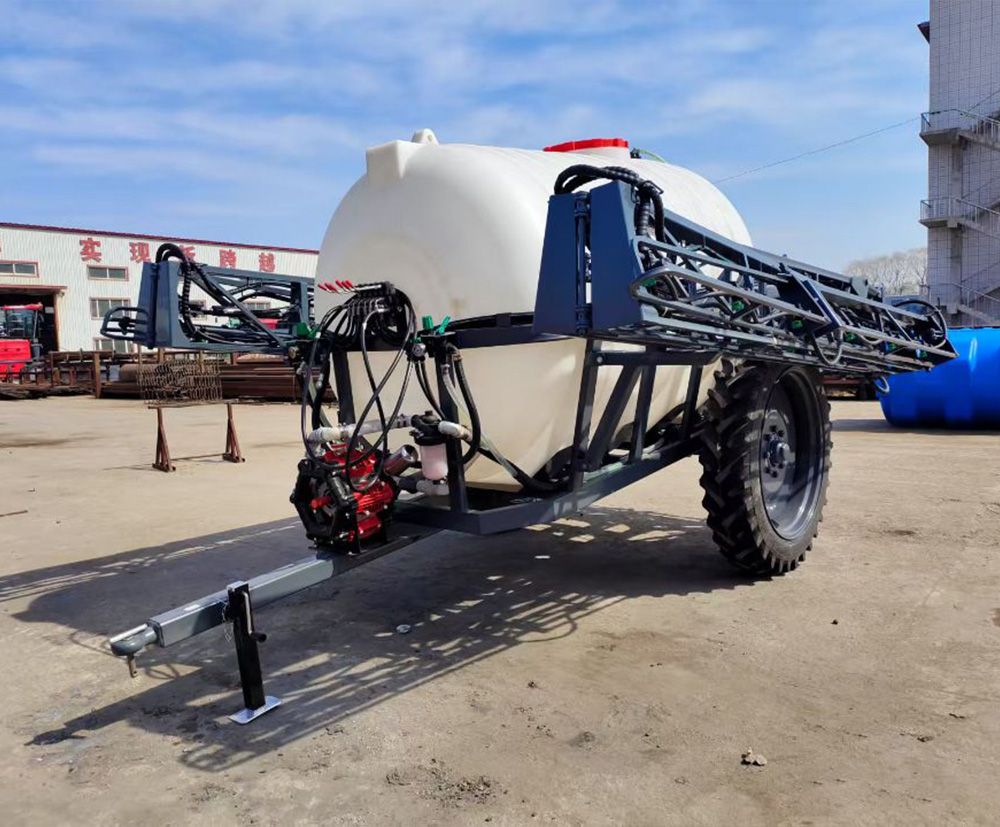

This versatile sprayer series comes in two main connection types: the suspension type (tractor-mounted) for smaller capacities, and the heavy-duty pull type (trailed) for 3000L and 5000L models. Depending on the model, it features either manual or hydraulic lance folding, ensuring easy operation, wide spraying widths (up to 25 meters), and uniform coverage.
| Tank Volume (L) | Spraying Width (m) | Matched Power (HP) | Working Pressure (Mpa) | Working Efficient (ha/h) | Lance Folder Type | Connection Type |
|---|---|---|---|---|---|---|
| 400L | 8 | >40 | 0.8-1 | 1.3 | Manual | Suspension type |
| 500L | 10/12 | >40 | 0.8-1 | 2.5 | Manual | Suspension type |
| 600L | 10/12 | >50 | 0.8-1 | 2.5 | Hydraulic | Suspension type |
| 800L | 12 | 60 | 0.8-1 | 2.5 | Hydraulic | Suspension type |
| 1000L | 12 | 60 | 0.8-1 | 2.5 | Hydraulic | Suspension type |
| 3000L | 25 | 100-180 | 0.3-0.5 | 13 | Hydraulic | Pull type |
| 5000L | 25 | 130-180 | 0.3-0.5 | 16 | Hydraulic | Pull type |
