Flow 13 - 70 cbm/h
Type Water turbine type or electric motor
Dimension of the pipe 75 - 90 mm
+86-15978403565
judy@volunmachinery.com

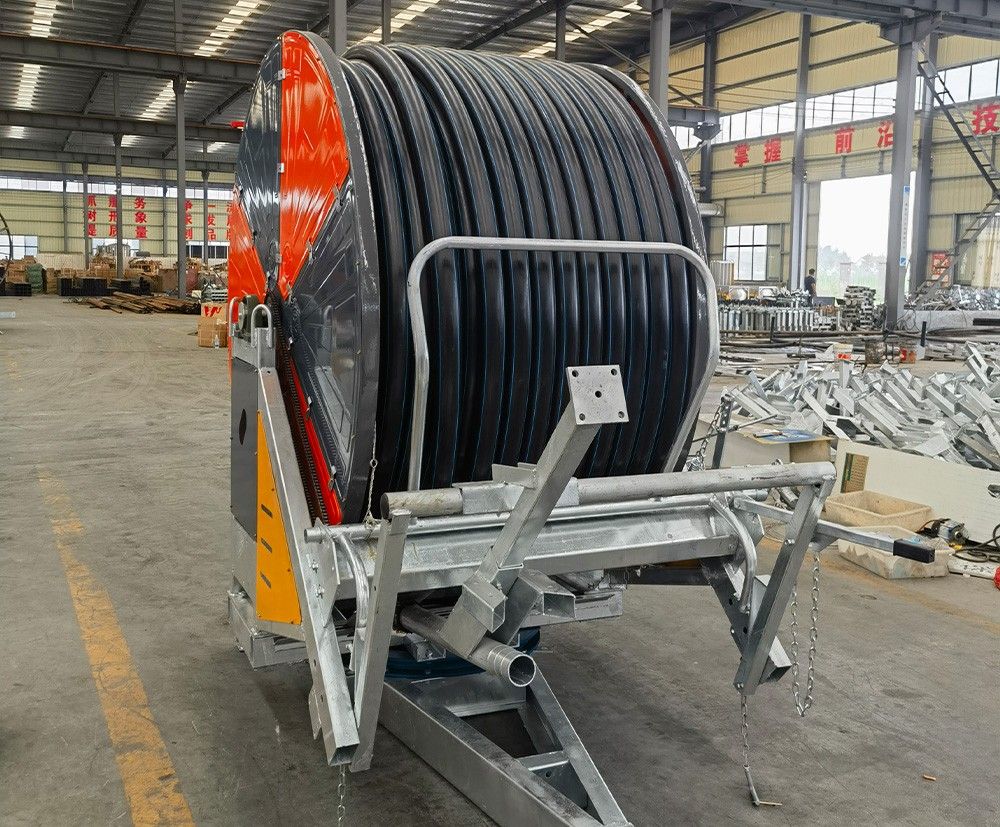

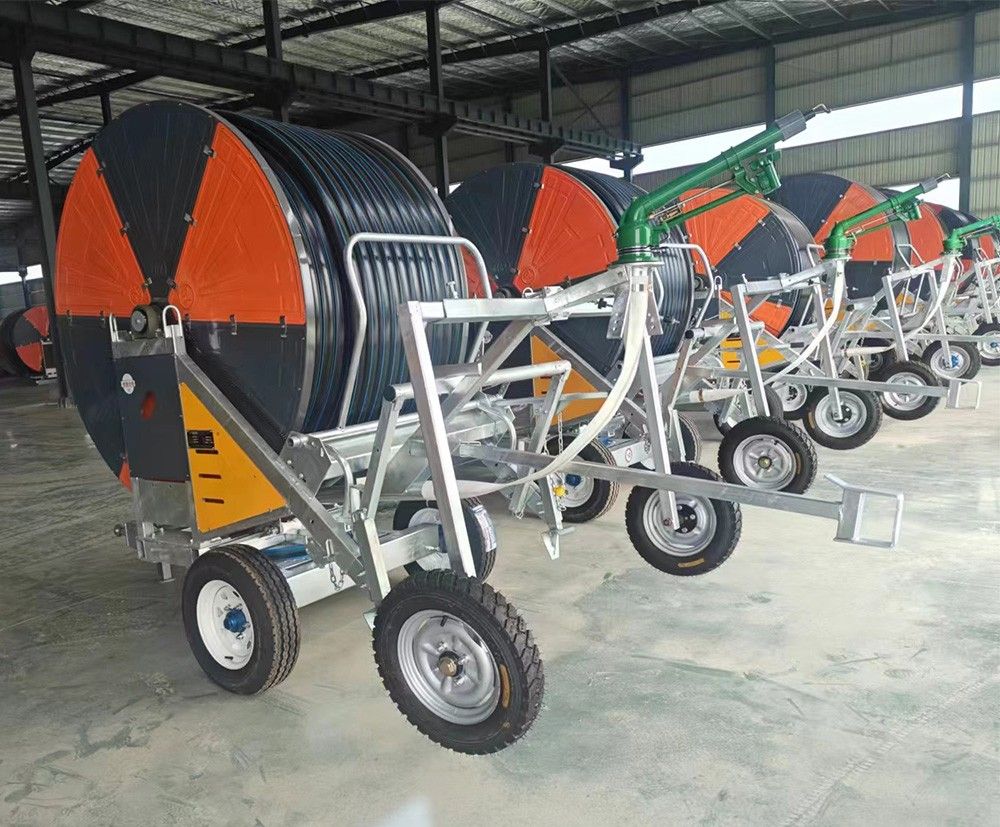

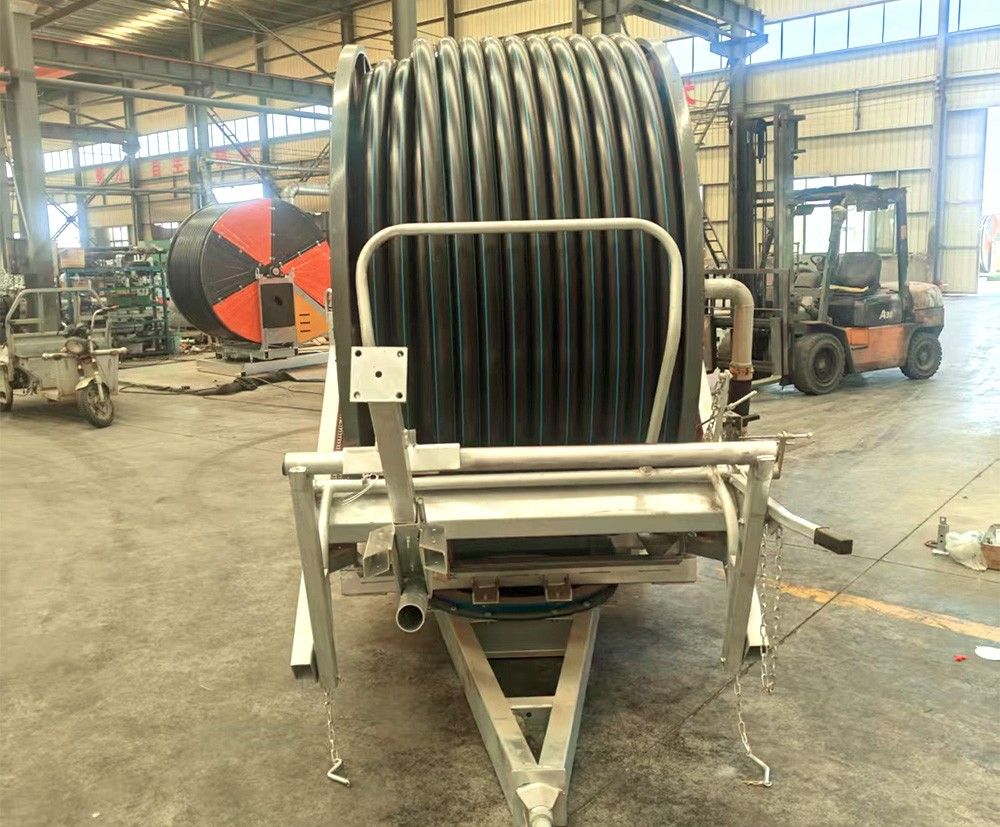

This Reel Type Irrigation Machine is a highly efficient agricultural solution designed for large-scale watering. It mainly consists of high-quality nozzles, a robust sprinkler frame, outlet and inlet pipes, a power unit, a water pump, and a filter system.
The system operates on a powerful centrifugal principle: the power unit drives the water pump impeller at high speed, creating a vacuum that draws water from the source. The water is then pressurized and forced through the outlet pipe to the nozzles, ensuring uniform spraying across fields or pastures for optimal crop growth.
| Model | Pipe Dimension (mm) | Type | Pipe Length (m) | Spraying Diameter (m) | Inlet Pressure (Mpa) | Flow (m³/h) |
|---|---|---|---|---|---|---|
| 75/300 | 75 | Water turbine/electric motor | 300 | 24-28 | 0.5-1 | 13-50 |
| 75/400 | 75 | Water turbine/electric motor | 400 | 24-28 | 0.5-1 | 13-50 |
| 90/300 | 90 | Water turbine/electric motor | 300 | 14-30 | 0.5-1 | 13-50 |
| 90/400 | 90 | Water turbine/electric motor | 400 | 14-30 | 0.5-1 | 13-62 |
| 90/500 | 90 | Water turbine/electric motor | 500 | 14-30 | 0.5-1 | 15-70 |
