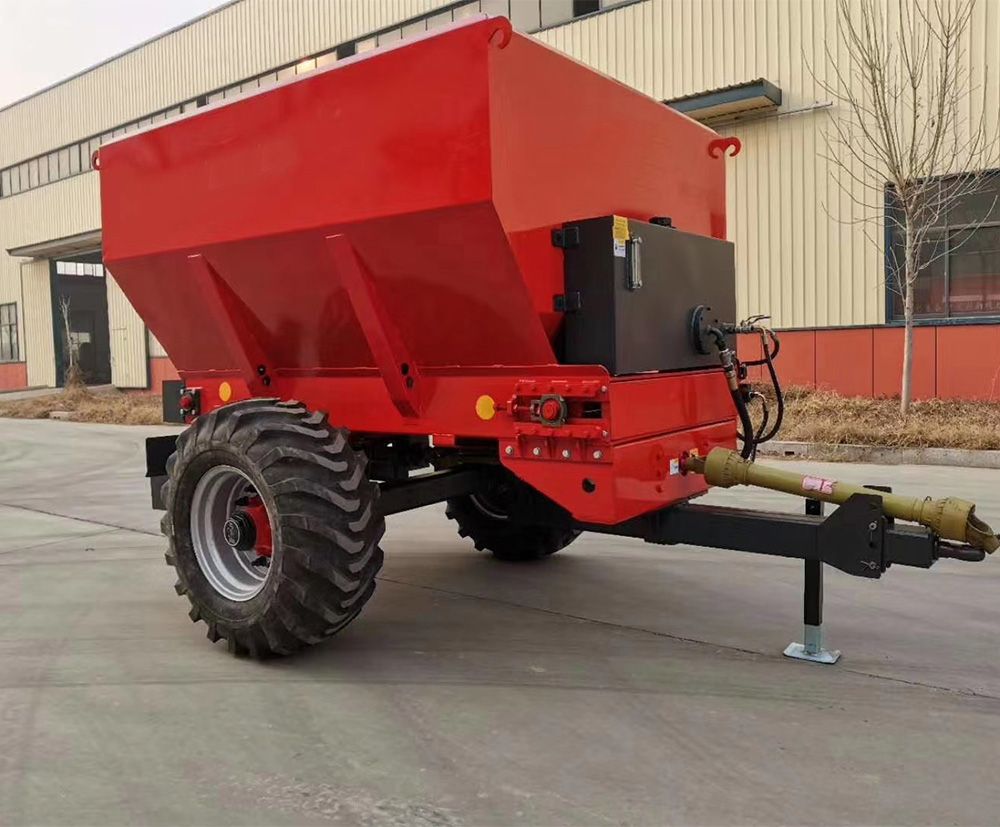

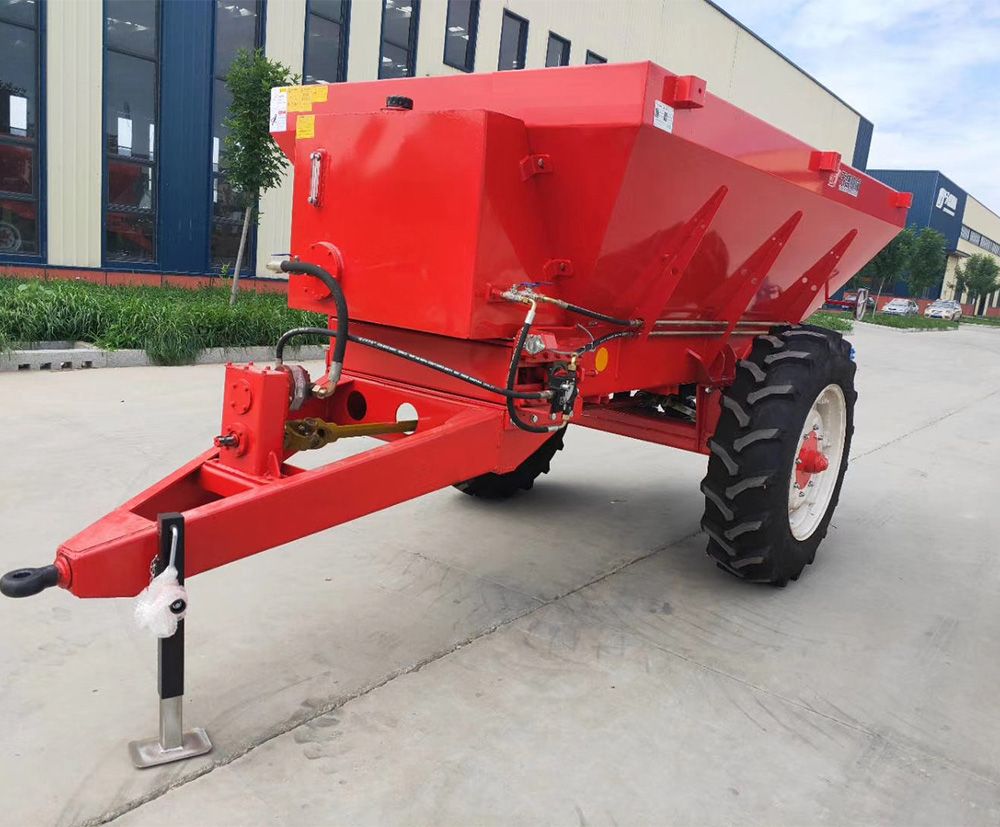

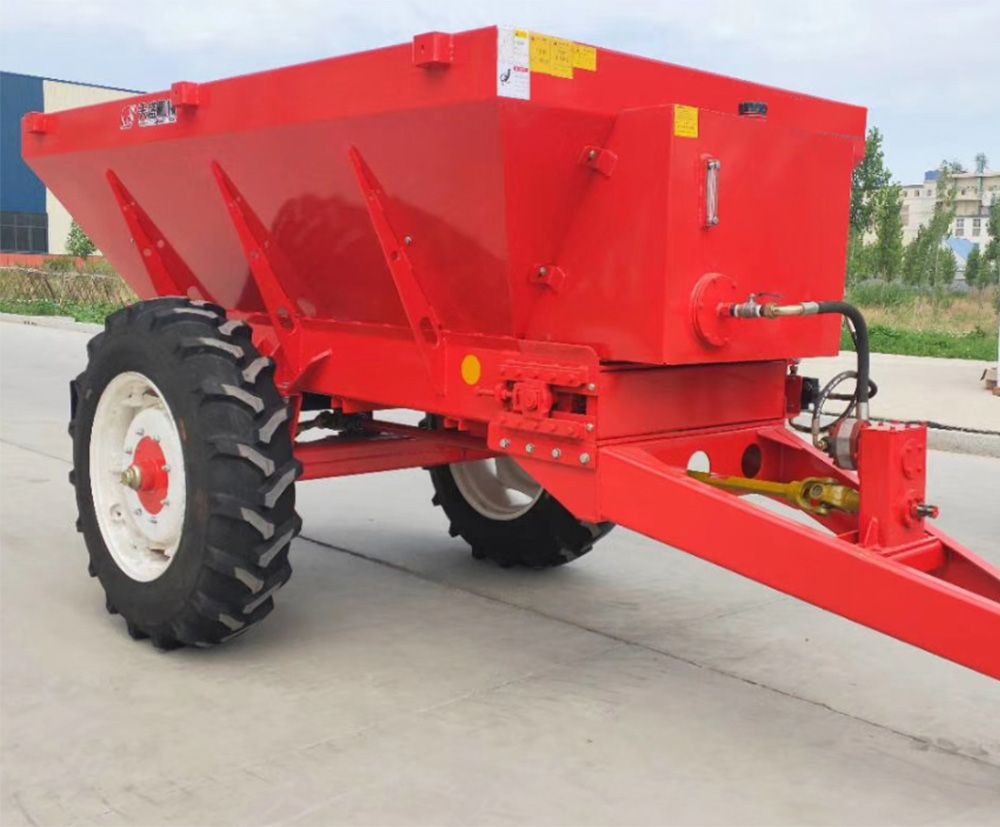

This multi-functional fertilizer spreader is designed for efficient and precise application. The size of the regulating valve at the discharge port can be easily adjusted according to different fertilizer output requirements. Furthermore, this valve controls the conveying speed of the chain: a larger gear increases the conveying speed and fertilizer flow rate, while a smaller gear reduces it.
To ensure highly stable operation, the machine is equipped with a high-quality reducer. By optimizing the fertilizer delivery speed, the spreader can multi-functionally and evenly distribute various materials, including powder fertilizer, granular fertilizer, and more.
| Model | Volume (m³) | Weight (kg) | Matched tractor power (hp) | Reducer | Spreading width (meter) | Tyre model | Dimension (meter) |
|---|---|---|---|---|---|---|---|
| VLGB-1.8Y | 1.8 | 960 | 25-50 | Optional | 6-15 | 10-15 | 3.8*1.65*1.75 |
| VLGB-2.5Y | 2.5 | 1350 | 30-60 | Optional | 6-15 | 11.2-28 | 4.2*1.8*1.98 |
| VLGB-3.8Y | 3.8 | 1610 | 50-80 | Included | 6-15 | 13.6-28 | 4.8*2.2*2.05 |
| VLGB-7.6Y | 7.6 | 1910 | 80-120 | Included | 6-15 | 10-20 | 5.5*2.2*2.25 |
